永磁除铁器RCYD-5

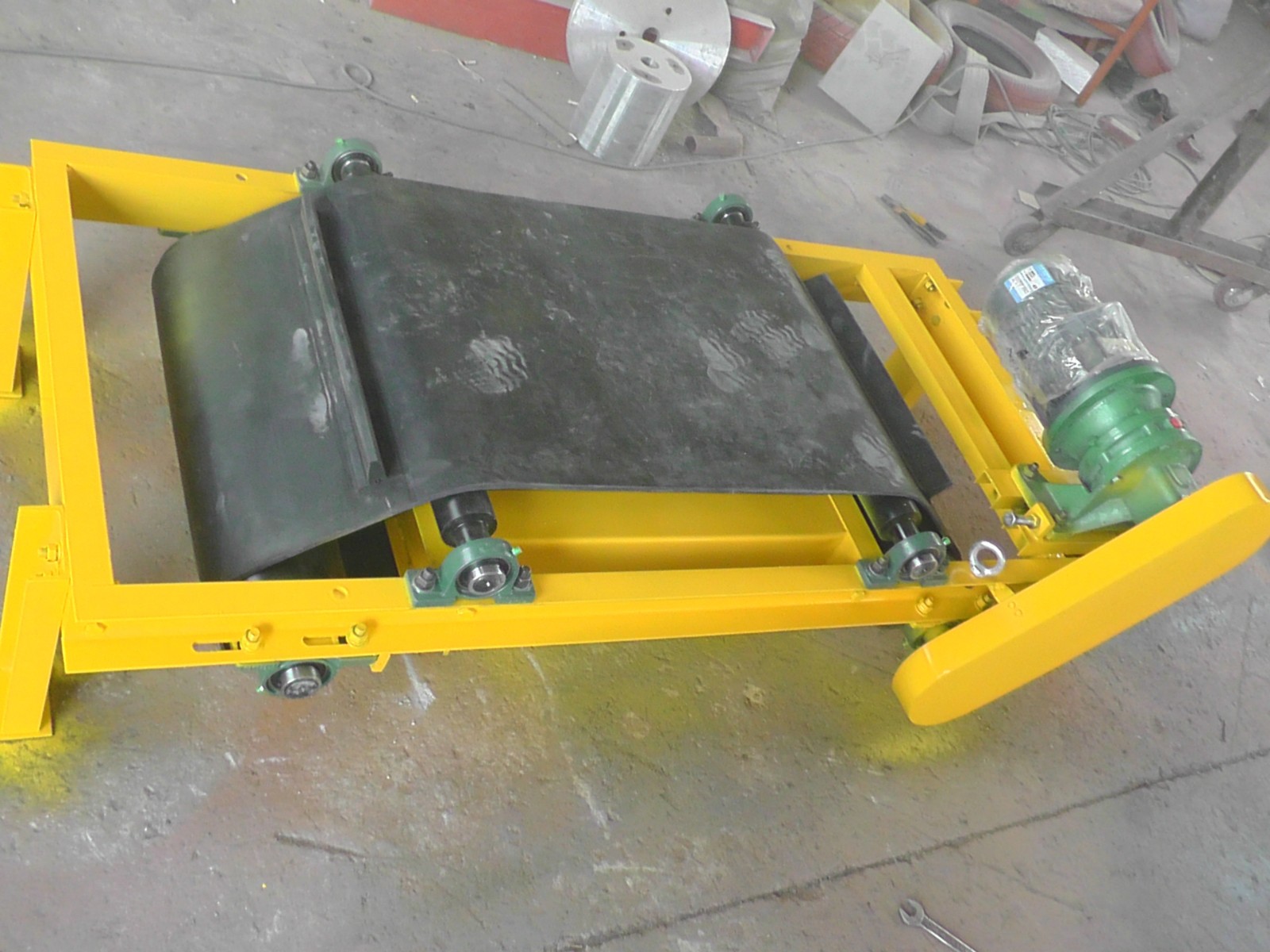

点击查看大图
产品名称:

永磁除铁器RCYD-5

发布日期: 2018-12-21
所在地: 山东潍坊永磁除铁器RCYD-5
单价: 0
关键词: 永磁除铁器RCYD-5 自卸式永磁除铁器RCYD-5 带式永磁除铁器RCYD-5
  • 潍坊沃森重工有限公司
  •
  • 最新供应 | 产品展厅 | 公司介绍
  • 企业类别:除铁器厂家
  • 主营产品:公司主要产品有:电磁除铁器、永磁除铁器、带式电磁(永磁)除铁器、干式电磁除铁器、手动式电磁(永磁)除铁器、自卸式电磁(永磁)除铁器、油冷式电磁除铁器、风冷式电磁除铁器、电磁(电机)振动给料机、螺旋输送
  • 联系人:王经理
  • 会员类别:普通会员

永磁除铁器RCYD-5[详细信息]

 永磁除铁器RCYD-5生产厂家-选沃森重工,自己动手超容易,永磁除铁器RCYD-5生产厂家- 永磁除铁器RCYD-5工具,全球品类全囊括,行业低价,售后有保证,折扣天天有.

 RCYD、RCYD系列永磁自缷除铁器是由高性能永磁磁芯、弃铁皮带、减速电机、框架、滚筒等部分组成,与各种输送机配套使用。用于从非磁性物料中自动清除铁磁性物质。RCYD、RCYC系列悬挂自卸式永磁除铁器是一种自动卸铁式除铁装置,工作时将不断吸附在除铁器上的铁磁性物质通过卸铁皮带的旋转自动抛出,达到自动卸铁目的。该机型应用范围广、节能省电、维护方便、故障率极低,在极其恶劣的环境中运行稳定可靠,是众多厂家采用较多的机型。 拥有防爆型。

永磁除铁器型号意义的表示:

35 (1).jpg

RCYC、RCYD系列皮带自卸式永磁除铁器安装示意图:




RCYC、RCYD系列皮带自卸式永磁除铁器主要技术参数: 仅供参考

型号

带宽

mm

额定吊高mm

物料厚度≤mm 磁场强度≥mT 驱动功率≤KW 适应带速≤m/s 工作制 重量 kg  外形尺寸mm
A B C D E
RCYD(C)-5 500 150 100 65 1.5 2.5 连续 750 1900 735 935 753 950
RCYD(C)-6 600/650 180 130 65 1.5 920 2050 780 1030 753 1100
RCYD(C)-6.5 650 200 150 70 1.5 1200 2165 780 1080 888 1200
RCYD(C)-8 800 250 200 70 2.2 1400 2350 786 1280 1088 1300
RCYD(C)-10 1000 300 250 70 3 2120 2660 920 1550 1335 1400
RCYD(C)-12 1200 350 300 70 4 3350 2860 1010 1720 1515 1550
RCYD(C)-14 1400 400 350 70 4 4450 3225 1050 1980 1755 1800
RCYD(C)-16 1600 450 400 70 5.5 6200 3350 1180 2160 1850 1950
RCYD(C)-18 1800 500 450 75 5.5 8100 3580 1210 2450 2130 2200
RCYD(C)-20 2000 550 500 75 7.5 9700 3800 1300 2700 2410 2400

RCYC、RCYD-T系列皮带自卸式永磁除铁器拥有超强磁型:T1型磁场强度90mT T2型为120mT T3型为150mT



RCYD (C) series of permanent magnetic separator dump by high performance permanent magnetic core, abandoned iron belt, gear motor, frame, rollers and other components,, perfect double pole structure, ensure the machine in harsh environments without failure the long run.
Technical characteristics:
◆ magnetic circuit design using computer simulation, perfect double pole structure, the magnetic field strength, gradient large suction.
◆ High-performance iron-boron magnetic source made, high energy product, demagnetization, eight demagnetization not exceed 5%.
◆ drum-shaped roller structure, with automatic correction function, sealed bearing, good sealing performance, able to adapt to a variety of harsh environments.
◆ belt automatic unloading of iron, can protect the long-term trouble-free continuous operation.
◆ control section with belt conveyor chain, to achieve local manual control and centralized control in two ways.
The main technical parameters:
